1. Learning Objectives
By the end of this study guide, the ECE 331 student should be able to:
- Identify the main anatomical structures of the human eye and state the function of each.
- Describe the three-layered wall of the eyeball and the three chambers it encloses.
- Explain, in basic physical terms, how the cornea and lens focus light onto the retina.
- Describe accommodation and the pupil's role as an adaptive aperture.
- Identify the photoreceptors (rods and cones) and relate their distribution to visual function (acuity vs. sensitivity).
- Outline the visual pathway from retina to visual cortex.
- Define common refractive errors and eye disorders.
- Relate eye structure and function to biomedical engineering technologies such as ophthalmoscopy, tonometry, OCT, visual-evoked potentials, and retinal prostheses.
⚡ Why should an ECE engineer study the eye?
Vision is our dominant sense, and the eye is a complete electro-optical acquisition system — lens assembly, variable aperture, image sensor with on-chip processing, and a ~1.2-million-fibre "output cable" (the optic nerve). Nearly every ophthalmic instrument an engineer will design, service, or improve — retinal cameras, tonometers, OCT scanners, autorefractors, laser surgery systems, visual prostheses — presupposes this basic physiology.
2. Overview — The Eye as an Imaging System
The human eye converts visible light (~380–750 nm) into neural signals. In engineering terms it consists of:
| Engineering stage | Eye structure | Function |
|---|---|---|
| Protective housing | Orbit, sclera, eyelids, tear film | Mechanical protection, lubrication, optical surface quality |
| Lens assembly | Cornea + crystalline lens | Focus a sharp image on the retina (~60 D total power) |
| Aperture | Iris/pupil (2–8 mm) | Auto-exposure and depth of field |
| Image sensor | Retina (~130 million photoreceptors) | Photon detection with adaptive gain |
| Pre-processing & output | Bipolar/horizontal/amacrine cells; ganglion cells; optic nerve | Contrast enhancement, compression to ~1.2 M channels |
| Processor | Lateral geniculate nucleus → visual cortex | Feature extraction (edges, colour, motion, depth) |

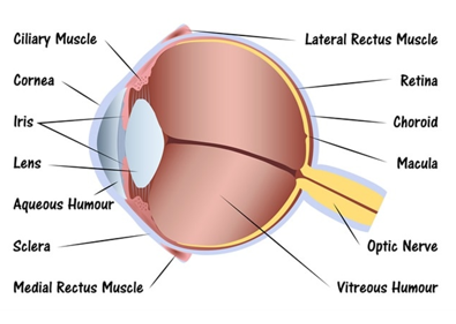

3. Anatomy of the Eye
3.1 The Three Layers of the Wall (Tunics)
| Layer | Parts | Function |
|---|---|---|
| Fibrous (outer) | Sclera (opaque white, posterior 5/6), cornea (clear, anterior 1/6) | Shape and protection; cornea is the eye's main window and strongest refracting surface |
| Vascular / uvea (middle) | Choroid, ciliary body, iris | Blood supply; choroid absorbs stray light; ciliary body makes aqueous humour and drives accommodation; iris forms the pupil |
| Nervous (inner) | Retina | Photodetection and neural encoding |
3.2 The Three Chambers
- Anterior chamber (cornea ↔ iris/lens) and posterior chamber (iris ↔ lens/zonules): filled with aqueous humour (n ≈ 1.336), produced by ciliary processes (~2–3 µL/min) and drained via the trabecular meshwork → Schlemm's canal.
- Vitreous chamber (lens ↔ retina): ~4 mL of vitreous humour — a clear gel that keeps the globe inflated and the retina apposed.
3.3 Key Anterior Structures
- Cornea: transparent, avascular, densely innervated; ~43 D of focusing power. Transparency comes from its precisely ordered collagen and a water-pumping endothelium.
- Iris: the coloured diaphragm; its sphincter (parasympathetic) constricts and dilator (sympathetic) enlarges the pupil (2–8 mm).
- Lens: transparent, flexible, suspended by zonules from the ciliary body. It fine-tunes focus by changing shape (accommodation).
- Limbus: the junction of cornea and sclera — contains the drainage angle (trabecular meshwork) and is the surgical access point.
3.4 Key Posterior Structures
- Macula lutea: small yellowish central retinal area for detailed vision.
- Fovea centralis: the macula's centre — almost pure cones, no overlying vessels; the point of sharpest vision (~20/10 possible).
- Optic disc: where ganglion-cell axons leave and retinal vessels enter — a natural blind spot (~15° temporal), visible with an ophthalmoscope.
- Ora serrata: the retina's anterior edge — retinal detachment commonly begins nearby.

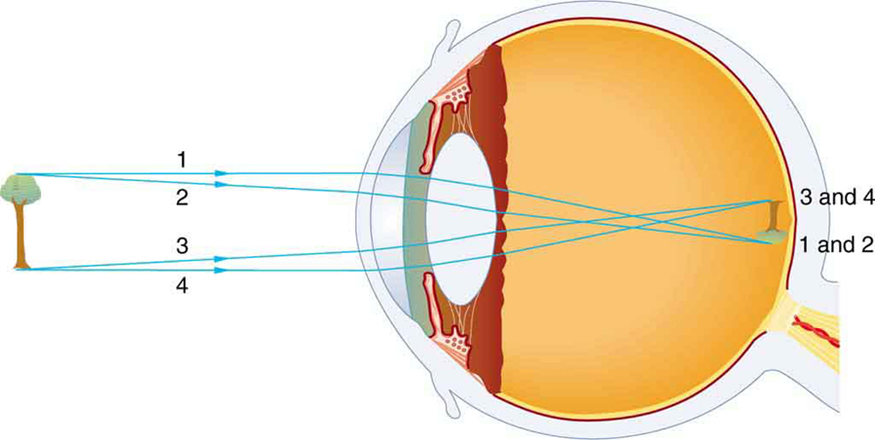

4. How the Eye Focuses Light
Refraction occurs where light crosses a boundary between media of different refractive index. The largest step is air → cornea (1.00 → 1.376), which is why the cornea contributes ~70% of the eye's total ~60 dioptres (D), while the lens contributes ~15–20 D and provides the variable focus.
Retinal image size ≈ visual angle (rad) × 22.3 mm — a 1° object lands as ~0.39 mm
4.1 Accommodation (Focusing Near and Far)
Helmholtz mechanism: to focus near, the ciliary muscle contracts, the ciliary ring shrinks, zonule tension drops, and the elastic lens rounds up (anterior surface steepens, power rises by up to ~14 D in youth). For distance, the muscle relaxes, zonules tighten, and the lens flattens.
- Near point: closest clear focus — ~7 cm at age 10, ~25 cm standard adult, receding with age.
- Near reflex triad: accommodation + ocular convergence + pupillary constriction act together.
- Presbyopia: lens stiffening with age → receding near point; corrected with plus ("reading") lenses.
4.2 The Pupil as an Adaptive Aperture
The pupil sets the eye's f-number (f/8 in the dark to f/2.4 in bright light):
- Small pupil: greater depth of field (why squinting sharpens blurred images) but diffraction limits resolution below ~2 mm.
- Large pupil: more light and diffraction-limited optics, but exposes spherical and chromatic aberrations.
- Response times: constriction ~0.2–0.5 s (parasympathetic), dilation 1–2 s (sympathetic).
5. The Retina and the Beginning of Vision
The retina is a multi-layered neural tissue — a biological image sensor with on-board processing. Light passes through the inner layers to reach the photoreceptors (the retina is "inverted"); supportive Müller glial cells act as light guides.
5.1 Photoreceptors — Rods and Cones
| Property | Rods (~120 million) | Cones (~6 million) |
|---|---|---|
| Location | Periphery; absent from fovea | Fovea-dense; sparse peripherally |
| Light level | Night (scotopic) vision | Daylight (photopic) vision |
| Detail vs. sensitivity | High sensitivity, low acuity (~100 rods share one output cell) | High acuity (foveal 1:1 wiring), lower sensitivity |
| Colour | None — one pigment (rhodopsin) | Three classes (S, M, L) → trichromatic colour |
| Dark adaptation | Slow (~30–45 min) | Fast (~6–7 min) |
| Response speed | Slow (motion smear) | Fast (flicker fusion ~60–90 Hz) |
5.2 Phototransduction in Brief
- A photon converts 11-cis retinal to all-trans in a photopigment molecule (rhodopsin in rods; cone opsins in cones).
- The activated pigment triggers an enzymatic cascade (transducin → phosphodiesterase) that lowers cGMP.
- cGMP-gated Na⁺ channels close → the cell hyperpolarises and releases less neurotransmitter (glutamate). (Photoreceptors are unusual: light turns them off.)
- Bipolar cells translate this into the language of the rest of the retina; horizontal and amacrine cells shape contrast and timing; ganglion cells emit action potentials.
The ~1.2 million ganglion-cell axons form the optic nerve — a ~100:1 compression of the photoreceptor output, achieved by encoding contrast, edges, colour opponency and change rather than raw pixel values.
6. The Visual Pathway to the Brain
- Optic nerve (CN II): carries ganglion-cell axons from each eye.
- Optic chiasm: fibres from the nasal half of each retina cross to the opposite side. Hence each hemisphere sees the opposite visual field.
- Optic tract → Lateral geniculate nucleus (LGN): the thalamic relay, arranged in layers (magnocellular — motion; parvocellular — detail and colour).
- Optic radiations: fibres fan to the occipital cortex; the lower loop (Meyer's loop) through the temporal lobe carries the superior visual field.
- Primary visual cortex (V1): at the calcarine sulcus; analysis of orientation, edges and binocular disparity begins here, then streams to association areas for motion ("where") and object recognition ("what").
Small side-branches serve the pupillary light reflex (pretectum), eye-movement orienting (superior colliculus) and circadian rhythm (suprachiasmatic nucleus via melanopsin ganglion cells).
7. Refractive Errors and Common Eye Disorders
7.1 Refractive Errors (Ametropia)
| Condition | Optics | Cause | Corrected by |
|---|---|---|---|
| Myopia (short-sighted) | Distant rays focus in front of retina | Eyeball too long / cornea too powerful | Minus (diverging) lenses |
| Hyperopia (long-sighted) | Focus behind retina (young eyes accommodate to compensate) | Eyeball too short / weak cornea | Plus lenses when symptomatic |
| Astigmatism | Different focus in different meridians (two focal lines) | Cornea/lens not spherical | Cylindrical ("cylinder") lenses |
| Presbyopia | Near point recedes with age | Lens stiffening | Reading add, bifocals/progressives |
7.2 Common Disorders (Selected)
| Disorder | What happens | Note |
|---|---|---|
| Cataract | Lens becomes cloudy | Leading cause of blindness worldwide; treated surgically (most common surgery globally) |
| Glaucoma | Raised IOP damages the optic nerve | Silent until advanced ("tunnel vision"); screened by measuring IOP and inspecting the optic disc |
| Age-related macular degeneration | Central retinal (macular) degeneration | Major cause of vision loss in the elderly; "wet" form treated with anti-VEGF injections |
| Diabetic retinopathy | Retinal vessels damaged by chronic hyperglycaemia | A leading working-age blindness cause; preventable with control + screening |
| Retinal detachment | Neural retina separates from its pigment layer | Emergency: flashes, floaters, "curtain" shadow |
| Colour-vision deficiency | One cone class absent/shifted (usually red–green) | ~8% of males, ~0.5% of females; X-linked |
8. Biomedical Engineering Relevance
| Technology | Purpose | Principle (ECE territory) |
|---|---|---|
| Ophthalmoscope / fundus camera | View and image the retina and optic disc | Coaxial illumination through the pupil; fundus camera optics |
| Autorefractor / phoropter | Measure refractive error; determine spectacle prescription | Infrared optoelectronics; microprocessor-controlled lens banks |
| Tonometer | Measure intraocular pressure (glaucoma screening) | Applanation mechanics (Goldmann: P = F/A) or air-puff deformation timing |
| Optical coherence tomography (OCT) | Cross-sectional retinal imaging (~5–7 µm resolution) | Low-coherence interferometry with near-IR light — "ultrasound with light" |
| Perimetry | Map the visual field | Automated threshold detection against normative databases |
| ERG / VEP | Test retinal and visual-pathway electrical function | Microvolt biosignal acquisition, ensemble averaging, filter design |
| Excimer/femtosecond lasers | Correct refractive errors (LASIK/SMILE/PRK) | UV photochemical ablation + kHz eye tracking |
| Retinal prostheses | Partial vision in retinal degeneration | Electrode arrays + camera/processor + neural stimulation encoding |
⚡ Takeaway
The eye is a working model of a full imaging-and-communication system: optical front-end, adaptive aperture, self-calibrating sensor with local pre-processing, and a massively compressed neural output. Its engineering principles inform camera and display design, compression algorithms, and every ophthalmic instrument above — and its disorders motivate the neural-interface challenge of restoring sight.
9. Glossary of Key Terms
| Term | Definition |
|---|---|
| Accommodation | Lens-shape change that focuses near objects, driven by the ciliary muscle via zonules. |
| Aqueous humour | Clear fluid filling the anterior and posterior chambers; produced by the ciliary processes, drained at the trabecular meshwork. |
| Blind spot | Optic-disc region of the retina with no photoreceptors; its deficit is normally filled in perceptually. |
| Choroid | Vascular, pigmented middle-layer tissue between retina and sclera; supplies the outer retina and absorbs stray light. |
| Cornea | Transparent anterior wall of the eye; provides ~70% of its refractive power. |
| Dioptre (D) | Unit of lens power = 1/focal-length-in-metres. |
| Emmetropia | Normal refraction — parallel rays focus exactly on the retina. |
| Fovea centralis | Centre of the macula; cone-dominated site of sharpest vision. |
| Glaucoma | Optic-nerve damage associated with raised intraocular pressure. |
| Intraocular pressure (IOP) | Fluid pressure inside the eye; normal ~10–21 mmHg. |
| Iris / pupil | Coloured diaphragm and its central aperture, controlling retinal illumination. |
| Lens (crystalline) | Transparent, flexible focusing element behind the iris. |
| Macula lutea | Central retinal region specialised for detailed vision. |
| Optic chiasm | Junction where nasal retinal fibres cross to the opposite hemisphere. |
| Photoreceptor | Retinal cell (rod or cone) converting light into an electrical signal. |
| Presbyopia | Age-related loss of near focusing from lens stiffening. |
| Pupillary light reflex | Bilateral constriction to light — tests CN II and III integrity. |
| Retina | Neural light-sensitive layer lining the posterior eye. |
| Rod / cone | Scotopic (sensitive, achromatic) / photopic (acuity, colour) photoreceptors. |
| Sclera | Tough white outer coat of the eyeball. |
| Vitreous humour | Clear gel filling the vitreous chamber, maintaining globe shape. |
| Zonules (suspensory ligament) | Fibres suspending the lens from the ciliary body; tension changes lens shape. |
10. Summary
- The eye is a complete imaging system: protective shell, cornea+lens optics (~60 D), iris aperture (2–8 mm), retinal sensor (~130 M photoreceptors), and a ~1.2 M-fibre optic-nerve output.
- The wall has three layers — fibrous (sclera/cornea), vascular (choroid/ciliary body/iris), and nervous (retina) — enclosing anterior, posterior and vitreous chambers.
- The cornea supplies ~70% of refractive power; the lens varies focus by accommodation; the pupil balances aberration, diffraction and depth of field.
- Rods give sensitive night vision in the periphery; cones give colour and fine detail, concentrated at the fovea. Photoreceptors hyperpolarise to light; the retina pre-processes and compresses the image ~100-fold before the optic nerve.
- At the chiasm, nasal fibres cross so each hemisphere receives the opposite visual field; the LGN relays to visual cortex for parallel analysis of form, colour and motion.
- Refractive errors (myopia, hyperopia, astigmatism, presbyopia) are focusing mismatches correctable with lenses or surgery; cataract, glaucoma, AMD and diabetic retinopathy are the major blinding diseases.
- For biomedical engineers, the eye motivates ophthalmoscopy, tonometry, OCT, autorefraction, ERG/VEP, laser refractive surgery and retinal prostheses — an applied showcase of optics, sensors, signal processing and neural interfaces.
